Draw Rectangle on Image using OpenCV

OpenCV offers functionality for drawing various geometric shapes such as line, rectangle, circle, etc.

The rectangle function can be used to draw a rectangle by specifying x and y coordinates for top-left and bottom-right corner.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
import cv2
import numpy as np

img = np.zeros((100, 300, 3), dtype=np.uint8)

x1, y1 = 50, 20
x2, y2 = 250, 80
color = (0, 255, 0)
thickness = 2
cv2.rectangle(img, (x1, y1), (x2, y2), color, thickness)

cv2.imshow('Image', img)
cv2.waitKey(0)
cv2.destroyAllWindows()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
#include <opencv2/opencv.hpp>

using namespace cv;

int main()
{
    Mat img = Mat::zeros(100, 300, CV_8UC3);

    int x1 = 50, y1 = 20;
    int x2 = 250, y2 = 80;
    Scalar color(0, 255, 0);
    int thickness = 2;
    rectangle(img, Point(x1, y1), Point(x2, y2), color, thickness);

    imshow("Image", img);
    waitKey(0);
    destroyAllWindows();

    return 0;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
package app;

import org.opencv.core.*;
import org.opencv.highgui.HighGui;
import org.opencv.imgproc.Imgproc;

public class Main
{
    static { System.loadLibrary(Core.NATIVE_LIBRARY_NAME); }

    public static void main(String[] args)
    {
        Mat img = Mat.zeros(100, 300, CvType.CV_8UC3);

        int x1 = 50, y1 = 20;
        int x2 = 250, y2 = 80;
        Scalar color = new Scalar(0, 255, 0);
        int thickness = 2;
        Imgproc.rectangle(img, new Point(x1, y1), new Point(x2, y2), color, thickness);

        HighGui.imshow("Image", img);
        HighGui.waitKey(0);
        HighGui.destroyAllWindows();

        System.exit(0);
    }
}

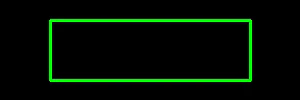

Result:

For convenience, the rectangle function also accepts x and y coordinates of the top-left corner and width and height. It is an alternative way to draw a rectangle.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
import cv2
import numpy as np

img = np.zeros((100, 300, 3), dtype=np.uint8)

x, y = 50, 20
w, h = 200, 60
color = (0, 255, 0)
thickness = 2
cv2.rectangle(img, (x, y, w, h), color, thickness)

cv2.imshow('Image', img)
cv2.waitKey(0)
cv2.destroyAllWindows()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
#include <opencv2/opencv.hpp>

using namespace cv;

int main()
{
    Mat img = Mat::zeros(100, 300, CV_8UC3);

    int x = 50, y = 20;
    int w = 200, h = 60;
    Scalar color(0, 255, 0);
    int thickness = 2;
    rectangle(img, Rect(x, y, w, h), color, thickness);

    imshow("Image", img);
    waitKey(0);
    destroyAllWindows();

    return 0;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
package app;

import org.opencv.core.*;
import org.opencv.highgui.HighGui;
import org.opencv.imgproc.Imgproc;

public class Main
{
    static { System.loadLibrary(Core.NATIVE_LIBRARY_NAME); }

    public static void main(String[] args)
    {
        Mat img = Mat.zeros(100, 300, CvType.CV_8UC3);

        int x = 50, y = 20;
        int w = 200, h = 60;
        Scalar color = new Scalar(0, 255, 0);
        int thickness = 2;
        Imgproc.rectangle(img, new Rect(x, y, w, h), color, thickness);

        HighGui.imshow("Image", img);
        HighGui.waitKey(0);
        HighGui.destroyAllWindows();

        System.exit(0);
    }
}
